KuWFi 750Mbps Dual-Radio High Power Ceiling Wireless Access Point SNMP/CAPWAP Protocol 48V POE

Item No.: A770
Five points:
  • 750Mbps dual 2.4GHz and 5.8GHz high performance ceiling mount wireless access point with Qualcomm Chipset, 5dBi omni antenna, with , then 48V Passive PoE support for easy install. PCB board with external PA, LNA circuit, more RF Power and higher receive sensitivity, improved the wall-pass-through capacity and increased Wi-Fi range.
  • Power over Ethernet(PoE)-Integrated 48V Passive Power over Ethernet (PoE), work with 48V passive PoE switch or PoE adapter, plug and play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
  • Build in Wi-Fi Channel Analysis Tool for best channel-Build in Smart Channel Analysis Tool, help to select the less Wi-Fi Interference channels, ensure the stability wireless signal supply a stable wireless coverage.
  • Multiple SSID and Tag VLAN Support-It support multiple SSID up to 4, different SSID can banding different VLAN ID to achieve user isolation and data security.
  • Work with Cloud Server for Remote Management and Captive Portal-Access into cloud server, easy to do remote management and maintenance

Product Description

KuWFi dual band indoor ceiling mount wireless access point

A770 is an 11ac dual band indoor ceiling mount wireless access point for hotels, cafe, hospital,school, shopping mall and home.


  • Comply IEEE 802.11ac MIMO Technology, 750Mbps high speed, integrated 48V Passive PoE (Power over Ethernet), it can be installed in areas where power outlets are not readily available, easy installation and lower cost; Housed in a ceiling mountable case, the A770 can be installed on a wall or ceiling to blends in nicely with most interior decorations in the house, to extend optimum wireless signal.
  • Work with WLAN Controller, centralized configuration and management, easy to achieve Wi-Fi Coverage and maintenance, access into Cloud Server to do remote monitor and Captive Portal authentication for more business value.


Wireless 802.11ac, 750Mbps MIMO Technology

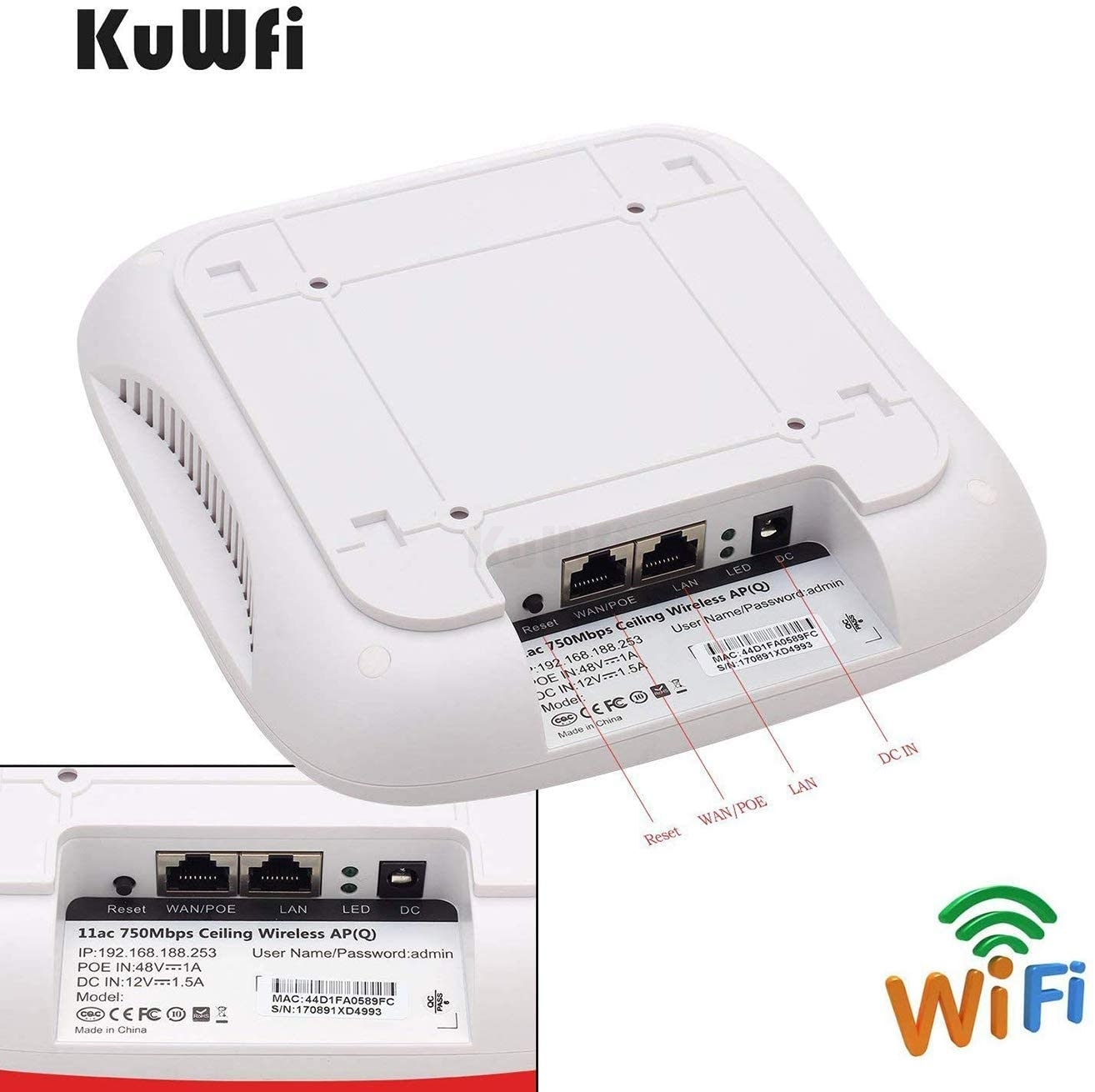

Interface 2*10/100Mbps RJ45 Ports

1* Reset Button to restore factory default

1*DC Port

Antenna :2.4GHz High Gain omni 5dBi Internal Antenna; 5.8GHz 5dBi Internal

Power :DC 12V/1A;PoE: 48V PoE

Size :188mmX188mmX50mm

Data Rate :2.4G 300Mbps, 5G: 450Mbps

Operation Mode :Gateway, Repeater, Wireless AP

Network Protocol :

- IEEE 802.3(Ethernet)

- IEEE 802.3u(Fast Ethernet)

- IEEE 802.11ac/n/g/b

Applicable to the Hotel Familia office and Restaurant

wireless access point
More Wi-Fi Coverage

More Wi-Fi Coverage


  • PCB board adopt SKYworks Power Amplifier and Low Noise Amplifier design. improved the wireless coverage and reduced the noise interference.


Wireless Access Point
Wireless Access Point


  • Fast Networking Solution,Cut Down Maintenance Cost
  • Based on CAPWAP protocol, AC controller Centralized Management,Cloud Server remote confiquration, easy in installation, monitoring and management, greatly saved the whole cost


Multiple Installation Methods

Multiple Installation Methods
