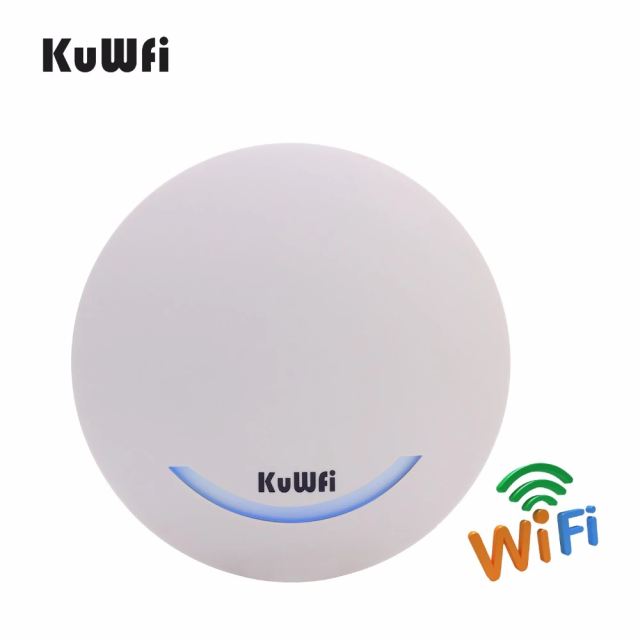

1200Mbps Ceiling Wireless AP 11ac 2.4Ghz&5.8 Ghz Ceiling-mounted AP Router Access Point WiFi Repeater Extender with POE Adapter

Item No.: AP240
AP240 is an11ac Wi-Fi standard high powerCeiling Wireless Access Pointwith MTK chipset , combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), make more than 80 end users can access into it. It is an economic option for hotel, school, rest
Description

Description:

AP240 is an11ac Wi-Fi standard high powerCeiling Wireless Access Pointwith MTK chipset , combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), make more than 80 end users can access into it. It is an economic option for hotel, school, restaurant or other enterprise place.


FIT/FAT Operation Mode

AP240 supports FIT/FAT operation mode;

FIT AP, work with AC controller, plug and play, central management by AC controller, mostly for enterprise application.

FAT AP, support AP, repeater, WISP operation mode, can be configured by GUI, suitable for home Use.


Multiple Protection for Stable Performance

AP240 with ABS fireproof material, white color, suitable for various decoration styles.And PCB board with watchdog design, can reboot automatically in case of failure.What’s more, it support lightning protection and ESD protection, can install in various harsh environment.


Power over Ethernet

AP240 has integrated IEEE802.3af Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not available, eliminating the mess of altering existing network infrastructure.


Zero Configure & Cloud Management System

Support FIT/FAT AP together, work withYunlink WLAN Controller, zero configurein IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....Besides that, it support advertisement and authentication functions like WeChat/Google/SMS/Facebook/Member Authentication.

Then the WLAN controller can access into Cloud Management System, easy to make administrator access it, to do remote monitoring/management at any time and any place, make this AP and WLAN controller more professionaland save cost  in Wi-Fi Projects.


Main Features:

1. Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate,11ac 2x2 MIMO,technology,2* 10/100Mbps Ethernet Ports

2. Support active IEEE 802.3af48V PoE standard

3. Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)

4. Support  (PPPOE, static IP, dynamicIP) , Wireless AP, Repeater, WISP operation modein FAT AP

5. With function of build in firewall, IP filter, URL filter and MAC filter

6. Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment


Hardware Specification

Hardware:
Chipset: MT7628DAN+MT7613BEN
Standard: 802.11ac/b/g/n, MIMO technology
Memory: 64MB
Flash: SPI NOR 8MB

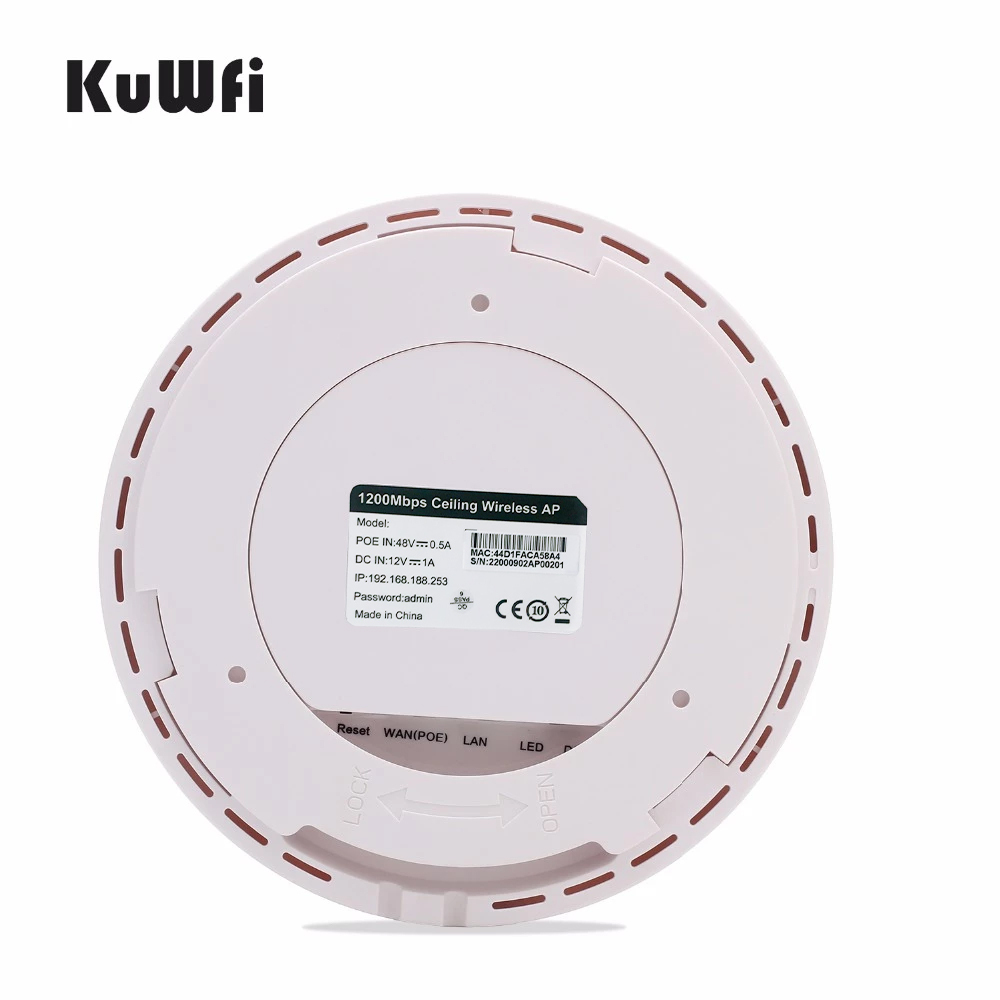

Interface:
1 * 10/100Mbps RJ45 WAN Port
1 * 10/100Mbps RJ45 LAN Port
1 * Reset button, press 15 seconds to revert to default setting

Antenna:
Build in 5dBi 2.4GHz MIMO Antenna
Build in 4dBi 5.8GHz MIMO Antenna
Size :188*33mm
POE: 48V  0.5A

LED Indicator
Sys, 2.4G WIF, 5.8G WIFI, LAN, WAN
Max Power Consumption< 10W
ESD ±6KV
Surge Protection  Different mode: ±2KV

RF Data
Frequency:
2.4G:802.11b/g/n: 2.4GHz~2484GHz
5GHz:802.11a/n/ac: 5150MHz ~5850MHz

Throughput: 1200Mbps
RF Power (2.4GHz)<22dBm
RF Power (5GHz)<21dBm
PPM : ±20ppm
Max Users: 128+

Environment Operating Temperature: -20~55 ℃
Storage Temperature: -40~70 ℃
Humidity: 5%~95% non-condensing;
Storage Humidity: 5%~90% non-condensing

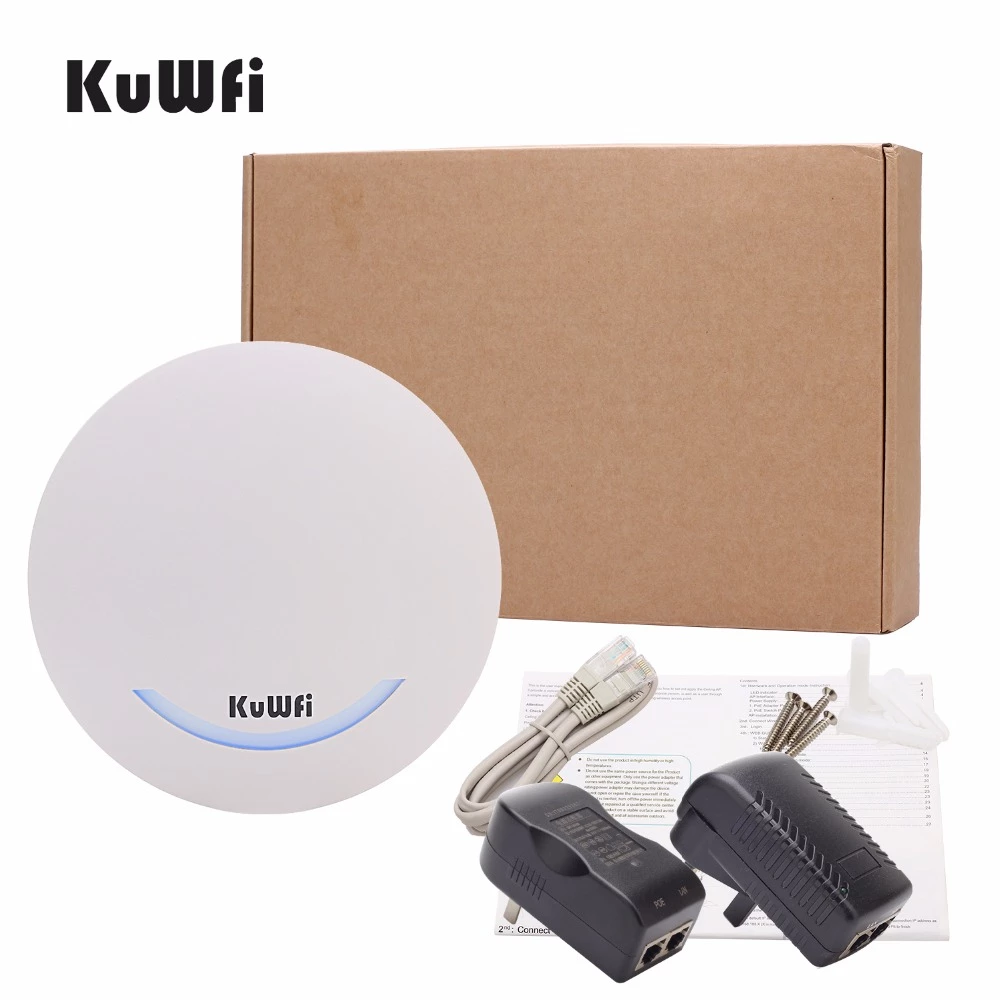

Package Contents

1x 1200Mbps Dual Band wireless access point
1x Ethernet Cable
1x Quick Installation Guide
1x Setting Accessory
