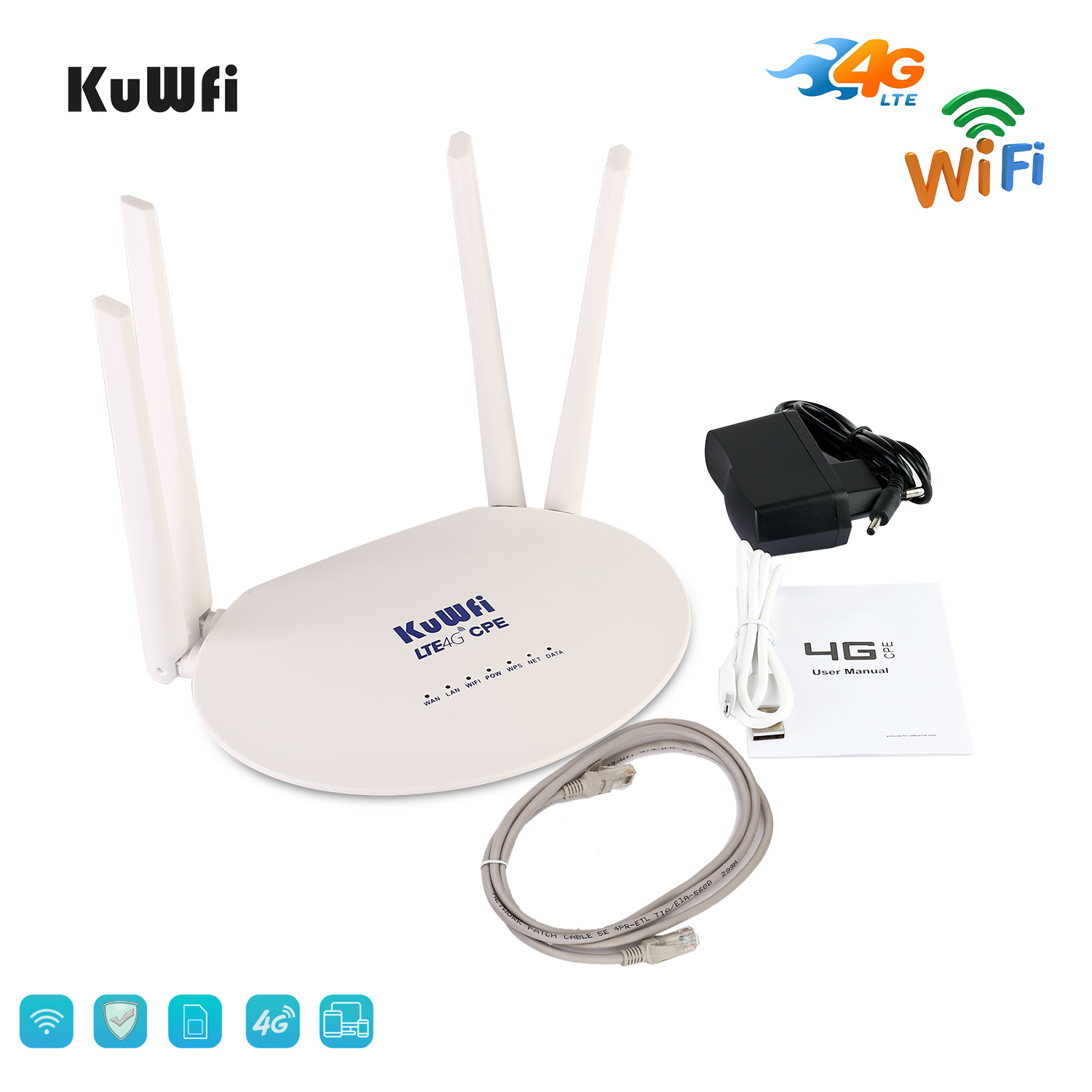

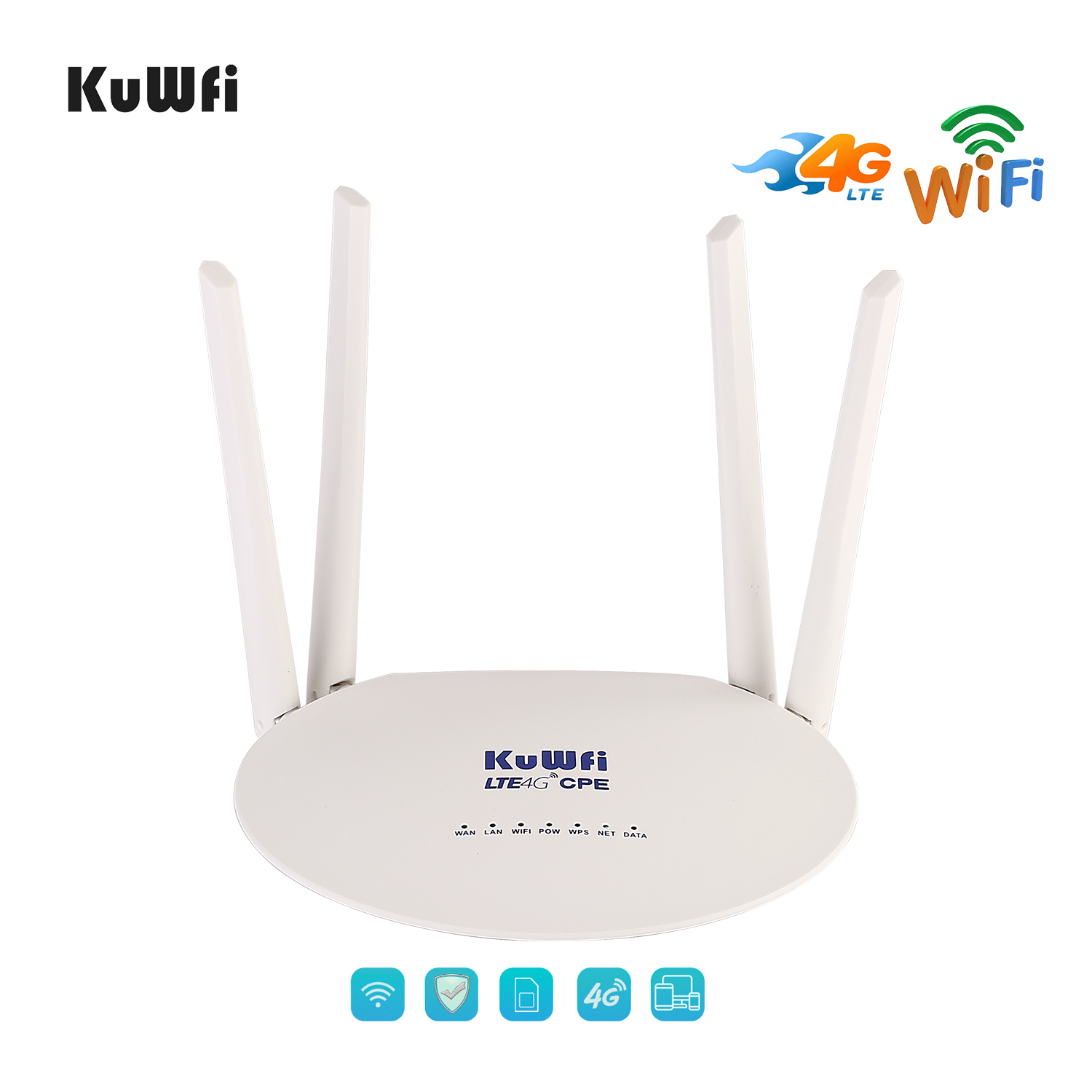

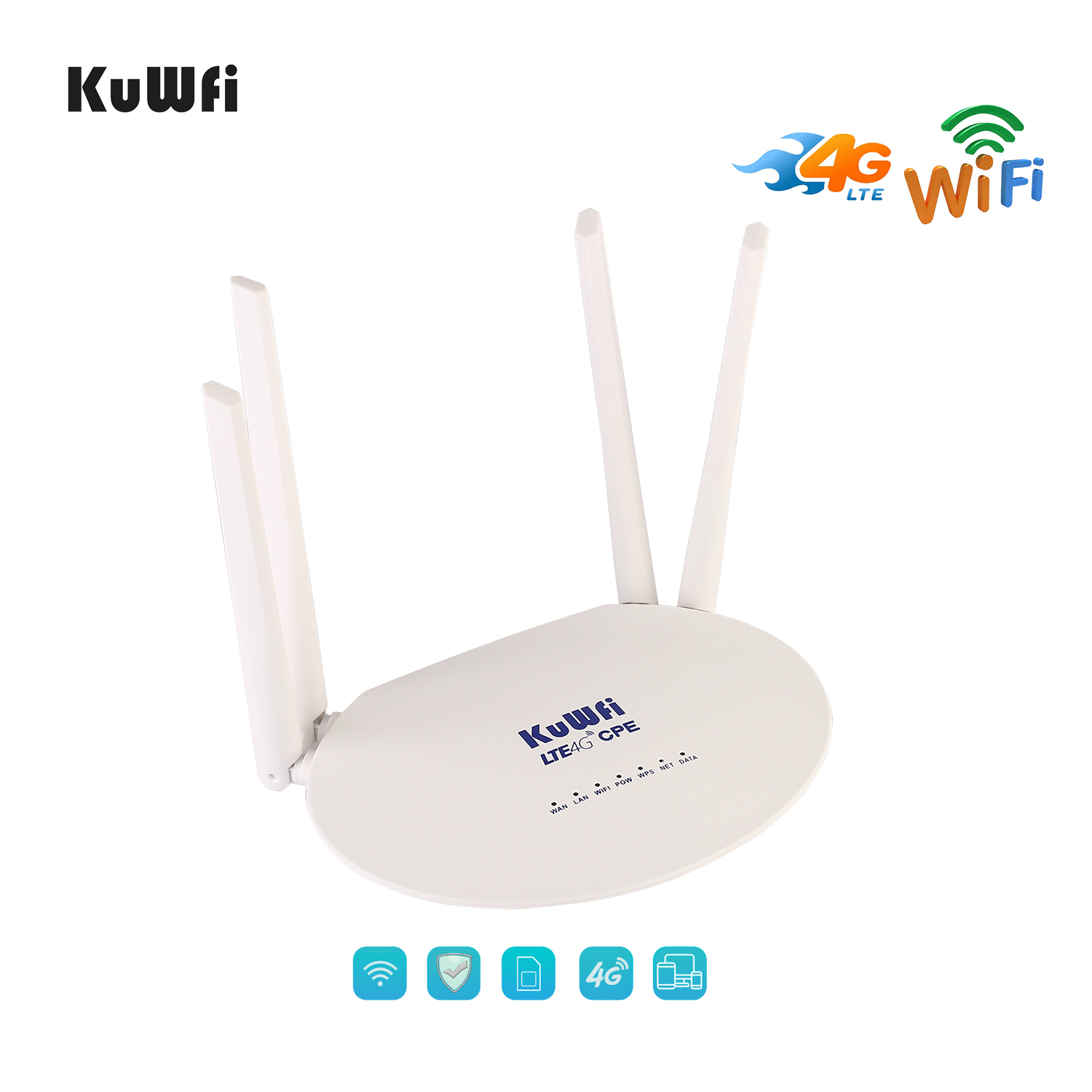

Cat6 4G CPE LTE Router with SIM Card Slot and Powerful 4pcs Non-Detachable Antenna

Item No.: CPE812CAT6
KuWFi 4G LTE Wireless WiFi Internet Router with powerful 4pcs Non-detachable antenna , Internet access to internet via HSPA/LTE Data SIM Card. or Internet access/PPPoE work mode , if you don have 4G sim card , you can use connect to lan port by PPPoE mode
Description

KuWFi Router 4G LTE,Cat6 300Mbps 4G Router with SIM Slot 4pcs Non-Detachable Antennas Mobile WiFi Hotspot Two LAN Port Up to 32 Users Work

 network band support
 US verison :

4G LTE FDD : B2/B4/B5/B7/B12/B13/B25/B26/B30/B66

 3G UMTS/WCDMA: B2/B4/B5

EU verison
4G LTE FDD: B1/B3/B5/B7/B8/B20 B1(2100MHz)/ B3(1800MHz)/ B5(850)/ B7(2600MHZ)/ B8(900MHZ)/ B20(800MHZ)

TDD: B38/B39/B40/B41

3G WCDMA: B1/B8



Main CPU: RT7628 Basic Frequency 580MHz

ROM: 64Mbits SPI Flash

RAM: 1024Mb DDR2

Transmission Range: 50-100M

Working Temp: -10℃ ~ 40℃ for storage: -40℃ ~70℃ for working

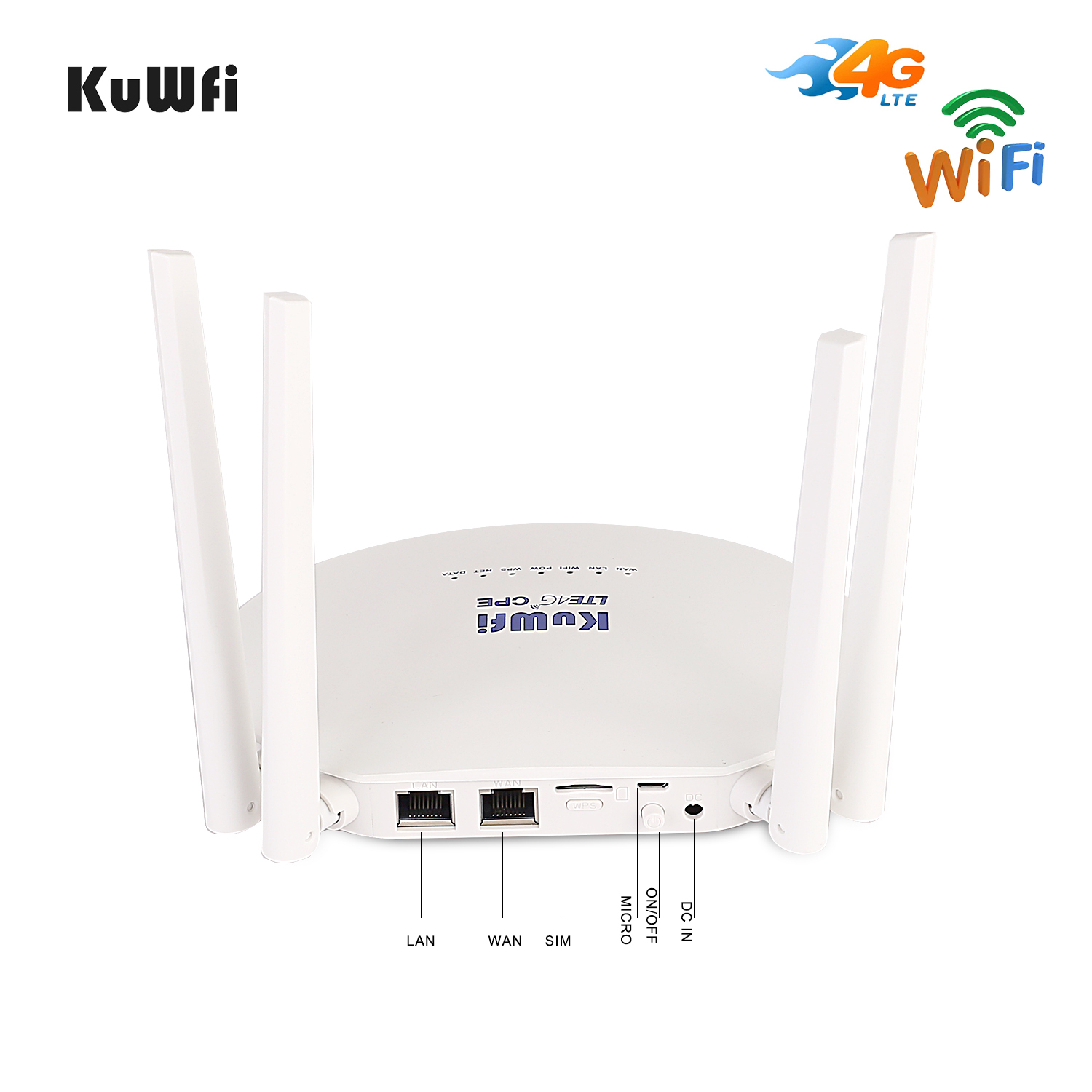

LAN: RJ45 x 2(1WLAN 1LAN, WAN port can also use as LAN port, both of WAN and LAN ports are marked by different color on Housing)

4G WiFi router CAT6 , 300Mbps ,provides a wireless transmission speed up to 300Mbps

Produce a 2.4GHz WFi hotspot with a powerful 3,000 square meter WiFi coverage

Internet connection sharing reaches to 32 WiFi users

Internal dual-antenna, selectable 4G / 3G signal A stylish and slim design to fit in perfectly with your home

With LED indicator display, see the status easily

Supports 2.4GHz WiFi, WiFi speed up to 300Mbps, effectively reduces the same frequency interference, improves the wireless transmission range, eliminates dead zon


Work Mode

Wired Mode:

Standard wireless modem mode:Static online mode/Dynamic Internet access/PPPoE online modem

The WAN port can automatically log in to the Internet access provided by the ISP using the PPPoE protocol

Multiple user devices can access the local network through wireless or wired, sharing Internet connection

SIM Card Mode:

4G wireless mode(Default)Choose 3G/4G Wireless modem mode as default, pulg in to standard SIM Card, KuWFi CPE will identify 3G/4G automatically.for some SIM Card should be update APN

4G To LAN: Insert 3G/4G SIM card to the Router , connect the LAN cable the router to PC/Desktop

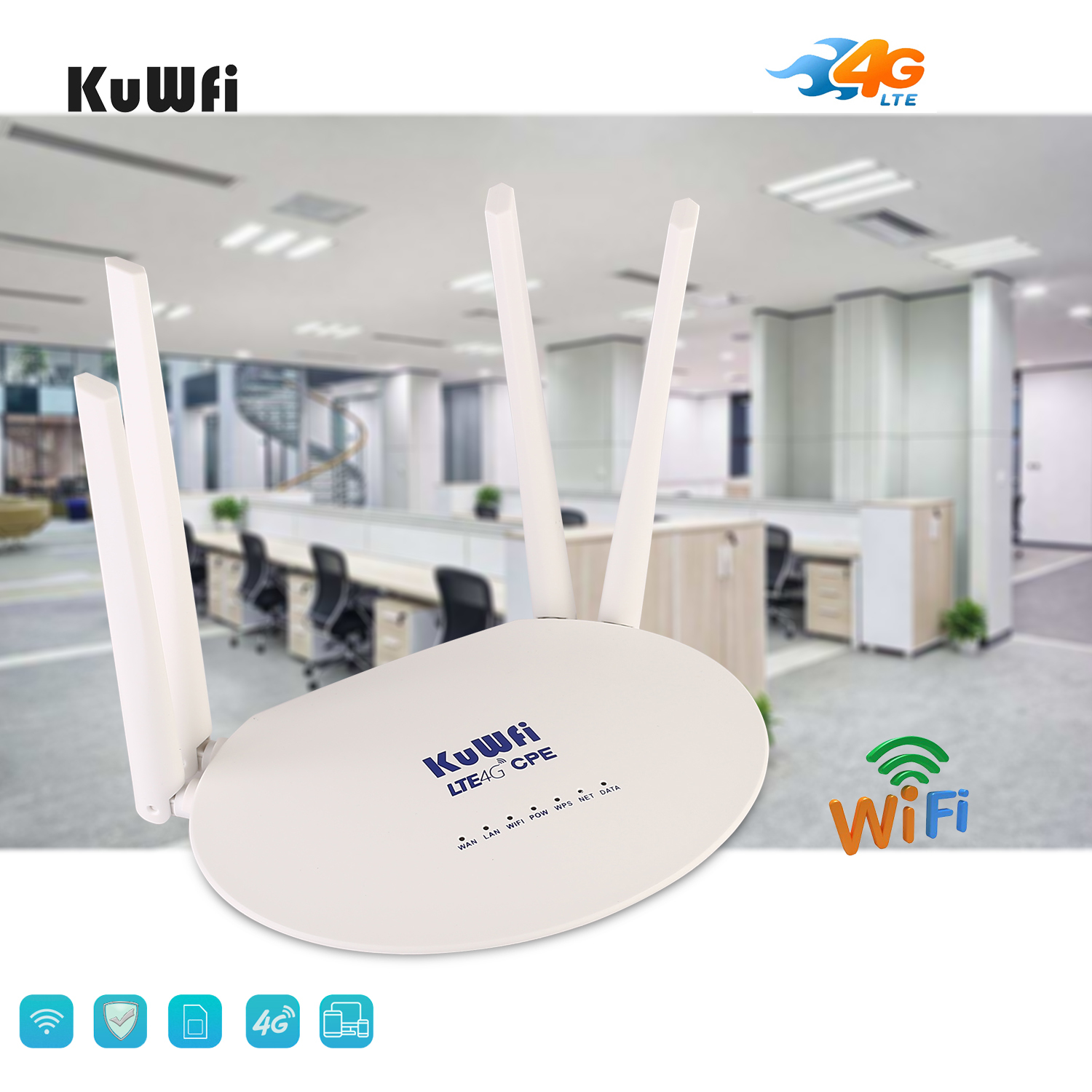

KuWFi 4G WiFi Router for home/office/hotel etc.

Stream and share smoothly movie, music, photos with your families and friends at the same time

Provide high-speed for 32 users simultaneously

Make you have a greater wireless enjoyme no need to connect the broardband ,there is 4G ,there is wifi, just plugs the 4G SIM card and pla
